  • ISCAR F90LN D2.50-09-1.00-R-N11 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

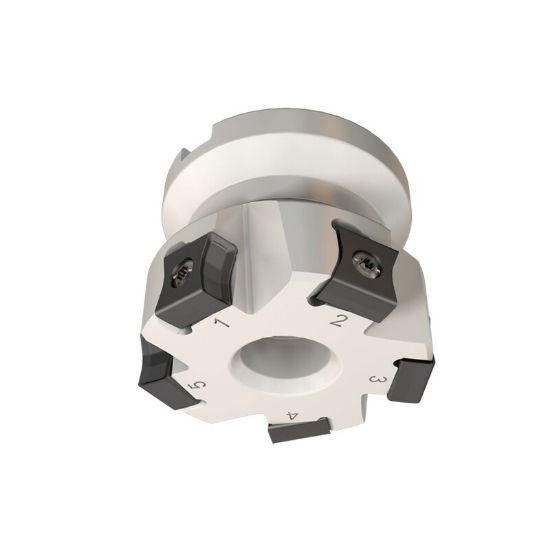

Picture of ISCAR F90LN D2.50-09-1.00-R-N11 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

ISCAR F90LN D2.50-09-1.00-R-N11 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

ANSI: F90LN D2.50-09-1.00-R-N11

ISO: F90LN D2.50-09-1.00-R-N11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103205
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert/Tool Tool
Insert Type Neutral
Shipping State Texas
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 11
Cutter Dia 2.5000 63.50MM - 2-1/2
Overall Len 1.7500 44.45MM
Cut Dia Min 2.5000 63.50MM - 2-1/2
Flutes/Inserts 9
Depth Of Cut Max 0.3940
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 2.5000 63.50MM - 2-1/2
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style LN
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002495
