  • ISCAR F90LN D2.00-05-.75-L-N11 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

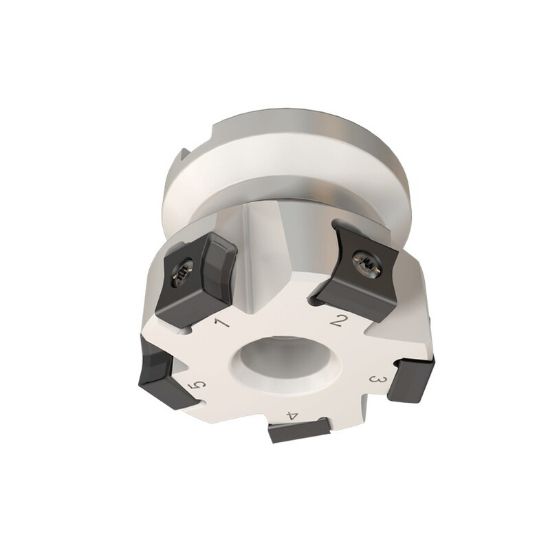

Picture of ISCAR F90LN D2.00-05-.75-L-N11 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

ISCAR F90LN D2.00-05-.75-L-N11 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

ANSI: F90LN D2.00-05-.75-L-N11

ISO: F90LN D2.00-05-.75-L-N11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103334
Delivery date: 3-5 days
$654.72

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Neutral
Application Side Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 11
Depth Of Cut Max 0.3940
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru No
Insert Style LN
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002495
