  • ISCAR F90LN D160-20-50.80-R-N15 Milling Cutter 90.0° 6.299 Diameter Face Mill 2.000 2.480 OAL 20 Flute

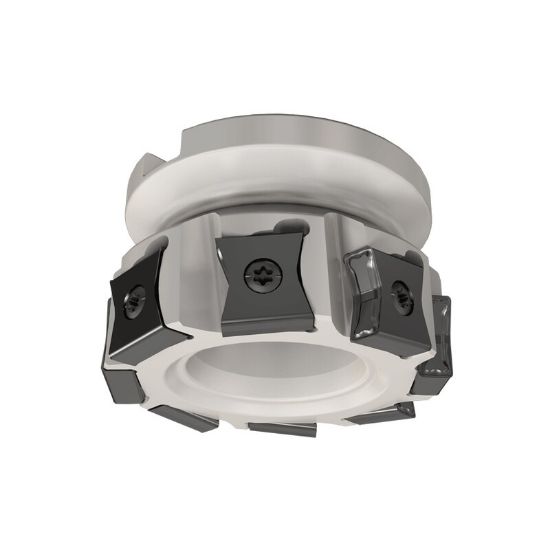

Picture of ISCAR F90LN D160-20-50.80-R-N15 Milling Cutter 90.0° 6.299 Diameter Face Mill 2.000 2.480 OAL 20 Flute

ISCAR F90LN D160-20-50.80-R-N15 Milling Cutter 90.0° 6.299 Diameter Face Mill 2.000 2.480 OAL 20 Flute

ANSI: F90LN D160-20-50.80-R-N15

ISO: F90LN D160-20-50.80-R-N15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102410
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Shipping State Texas
Insert Type Neutral
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.5510
Cut Dia Max 6.2990 159.99MM
Machine Side Connection Size 2.0000 50.80MM
Flutes/Inserts 20
Cutter Dia 6.2990 159.99MM
Overall Len 2.4800 62.99MM
Cut Dia Min 6.2990 159.99MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style LN
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002377
