  • ISCAR F90LN D10.0-15-2.50-R-N15 Milling Cutter 90.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 15 Flute

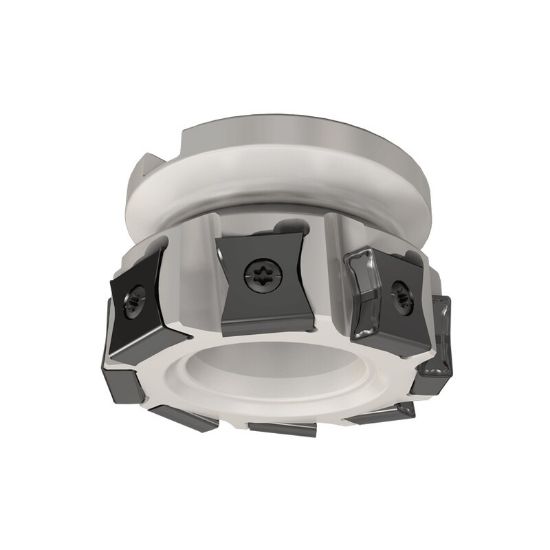

Picture of ISCAR F90LN D10.0-15-2.50-R-N15 Milling Cutter 90.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 15 Flute

ISCAR F90LN D10.0-15-2.50-R-N15 Milling Cutter 90.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 15 Flute

ANSI: F90LN D10.0-15-2.50-R-N15

ISO: F90LN D10.0-15-2.50-R-N15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181174
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Face Milling, Side Milling
Shipping State Texas
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Insert Size Ic 15
Cut Dia Min 10.0000 254.00MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 15
Depth Of Cut Max 0.5510
Cutter Dia 10.0000 254.00MM
Overall Len 2.5000 63.50MM
Cut Dia Max 10.0000 254.00MM
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Cool Sply Type External
Insert Style LN
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002024
