  • ISCAR F90LN D100-12-31.75-R-N15 Milling Cutter 90.0° 3.937 Diameter Face Mill 1.250 1.968 OAL 12 Flute

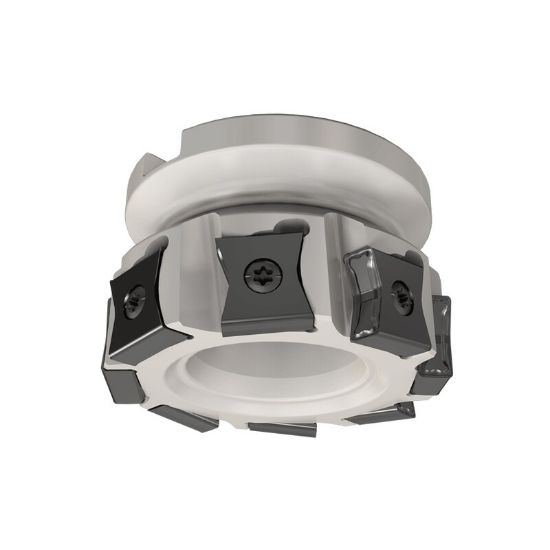

Picture of ISCAR F90LN D100-12-31.75-R-N15 Milling Cutter 90.0° 3.937 Diameter Face Mill 1.250 1.968 OAL 12 Flute

ISCAR F90LN D100-12-31.75-R-N15 Milling Cutter 90.0° 3.937 Diameter Face Mill 1.250 1.968 OAL 12 Flute

ANSI: F90LN D100-12-31.75-R-N15

ISO: F90LN D100-12-31.75-R-N15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181172
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.5510
Insert Size Ic 15
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 3.9370 100.00MM
Overall Len 1.9680 49.99MM
Flutes/Inserts 12
Cut Dia Max 3.9370 100.00MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru No
Insert Style LN
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002377
