  • ISCAR F90LN D100-08-31.75-R-N15 Milling Cutter 90.0° 3.937 Diameter Face Mill 1.250 1.968 OAL 8 Flute

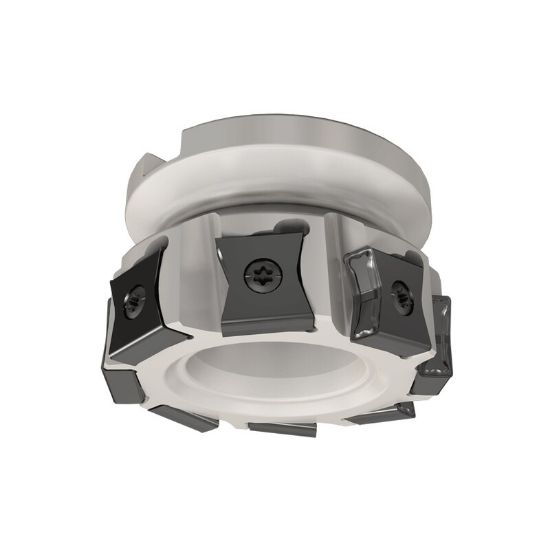

Picture of ISCAR F90LN D100-08-31.75-R-N15 Milling Cutter 90.0° 3.937 Diameter Face Mill 1.250 1.968 OAL 8 Flute

ISCAR F90LN D100-08-31.75-R-N15 Milling Cutter 90.0° 3.937 Diameter Face Mill 1.250 1.968 OAL 8 Flute

ANSI: F90LN D100-08-31.75-R-N15

ISO: F90LN D100-08-31.75-R-N15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102405
Delivery date: 3-5 days
$932.16

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Neutral
Application Side Milling, Slot Milling, Face Milling
Insert/Tool Tool
Made In USA No
Shipping State Texas
Dimensional Specifications
Flutes/Inserts 8
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Overall Len 1.9680 49.99MM
Insert Size Ic 15
Cutter Dia 3.9370 100.00MM
Cut Dia Max 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.5510
Cutting & Machining Properties
Coolant Thru No
Insert Style LN
Insert Shape/Cutter Pocket Shape Rectagonal
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002377
