  • ISCAR F90LN D080-07-25.40-R-N15 Milling Cutter 90.0° 3.150 Diameter Face Mill 1.000 1.968 OAL 7 Flute

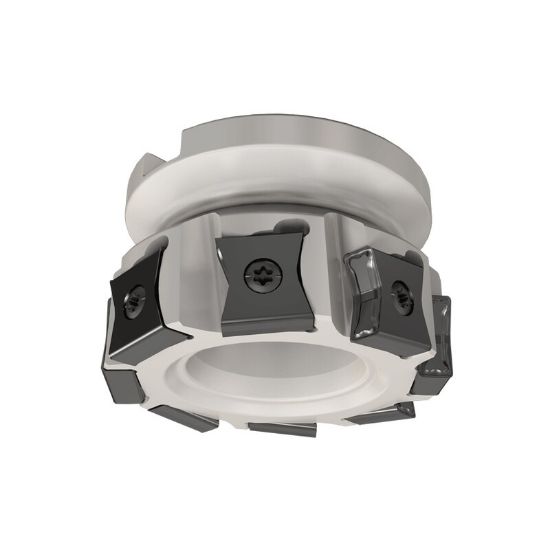

Picture of ISCAR F90LN D080-07-25.40-R-N15 Milling Cutter 90.0° 3.150 Diameter Face Mill 1.000 1.968 OAL 7 Flute

ISCAR F90LN D080-07-25.40-R-N15 Milling Cutter 90.0° 3.150 Diameter Face Mill 1.000 1.968 OAL 7 Flute

ANSI: F90LN D080-07-25.40-R-N15

ISO: F90LN D080-07-25.40-R-N15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102403
Delivery date: 3-5 days
$841.92

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Neutral
Application Side Milling, Slot Milling, Face Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Cut Dia Max 3.1500 80.01MM
Overall Len 1.9680 49.99MM
Depth Of Cut Max 0.5510
Flutes/Inserts 7
Tool Material Steel
Insert Size Ic 15
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 3.1500 80.01MM
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Style LN
Cool Sply Type External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Rectagonal
Fasteners & Connectors
Insert Screw 7002377
