  • ISCAR F90LN D080-07-25.40-L-N15 Milling Cutter 90.0° 3.150 Diameter Face Mill 1.000 1.968 OAL 7 Flute

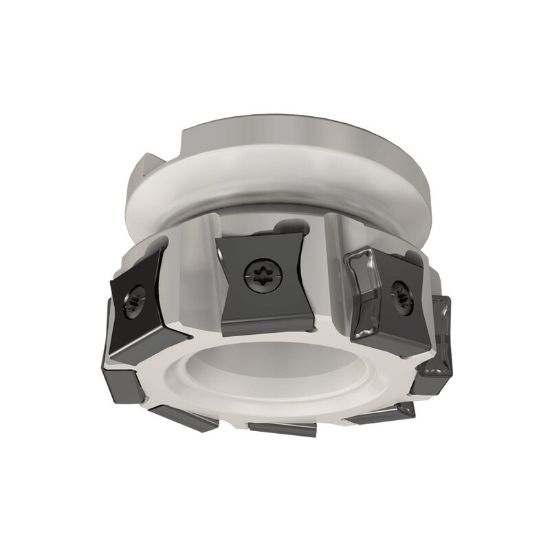

Picture of ISCAR F90LN D080-07-25.40-L-N15 Milling Cutter 90.0° 3.150 Diameter Face Mill 1.000 1.968 OAL 7 Flute

ISCAR F90LN D080-07-25.40-L-N15 Milling Cutter 90.0° 3.150 Diameter Face Mill 1.000 1.968 OAL 7 Flute

ANSI: F90LN D080-07-25.40-L-N15

ISO: F90LN D080-07-25.40-L-N15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103102
Delivery date: 3-5 days
$841.92

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling, Side Milling, Slot Milling
Shipping State Texas
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Neutral
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 1.9680 49.99MM
Depth Of Cut Max 0.5510
Flutes/Inserts 7
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 3.1500 80.01MM
Cut Dia Min 3.1500 80.01MM
Insert Size Ic 15
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Cool Sply Type External
Coolant Thru No
Insert Style LN
Fasteners & Connectors
Insert Screw 7000216
