  • ISCAR F86LNX D3.0-08-1.00-R-N15 Milling Cutter 86.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 8 Flute

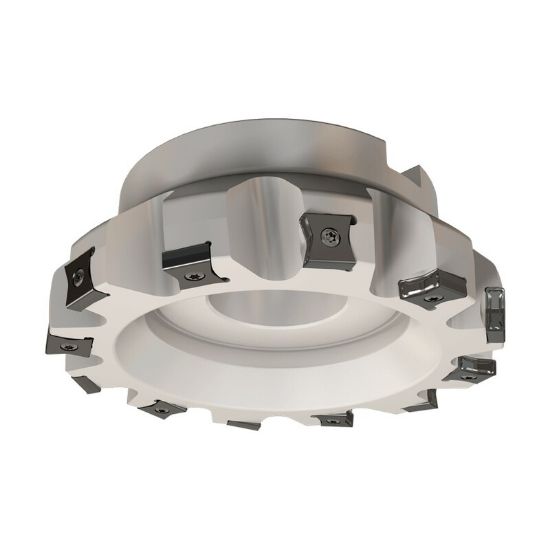

Picture of ISCAR F86LNX D3.0-08-1.00-R-N15 Milling Cutter 86.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 8 Flute

ISCAR F86LNX D3.0-08-1.00-R-N15 Milling Cutter 86.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 8 Flute

ANSI: F86LNX D3.0-08-1.00-R-N15

ISO: F86LNX D3.0-08-1.00-R-N15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104412
Delivery date: 3-5 days
$923.52

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Cut Dia Max 3.0000 76.20MM
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 8
Cutter Dia 3.0000 76.20MM
Insert Size Ic 15
Depth Of Cut Max 3.0000
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style LN
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002377
