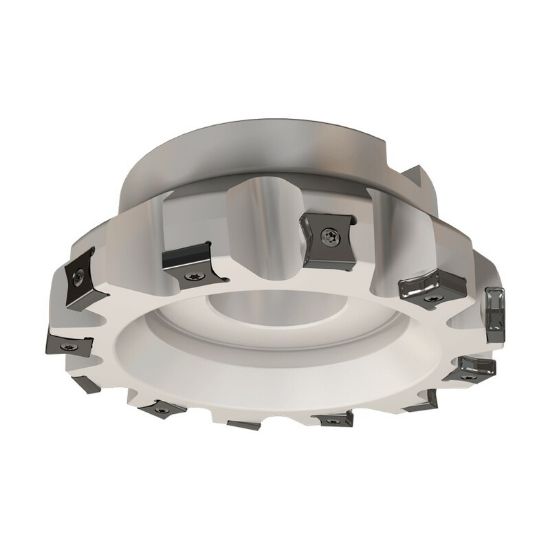

ISCAR F86LNX D100-10-3175-R-N15 Milling Cutter 86.0° 3.937 Diameter Face Mill 1.250 1.968 OAL 10 Flute
ISCAR F86LNX D100-10-3175-R-N15 Milling Cutter 86.0° 3.937 Diameter Face Mill 1.250 1.968 OAL 10 Flute
ANSI: F86LNX D100-10-3175-R-N15
ISO: F86LNX D100-10-3175-R-N15
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
ISCAR
SKU:
ISC3181041
Delivery date:
3-5 days
Call (262) 251-4020 for pricing
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
File Downloads
DXF
STP
STPL
Products specifications
Attribute name
Attribute value
General Product Information
Insert Application
Semi Finishing, Roughing
Shipping State
Texas
Insert Type
Negative
Made In USA
No
Insert/Tool
Tool
Application
Face Milling
Package Size
1
Dimensional Specifications
Cutter Dia
3.9370 100.00MM
Cut Dia Max
3.9370 100.00MM
Tool Material
Steel
Machine Side Connection Size
1.2500 31.75MM
Insert Size Ic
15
Machine Side Connection Type
Face Mill/Shell Mill
Depth Of Cut Max
0.7500
Flutes/Inserts
10
Cut Dia Min
3.9370 100.00MM
Overall Len
1.9680 49.99MM
Cutting & Machining Properties
Insert Style
LN
Cool Sply Type
External
Insert Shape/Cutter Pocket Shape
Rectagonal
Coolant Thru
No
Fasteners & Connectors
Insert Screw
7090008
