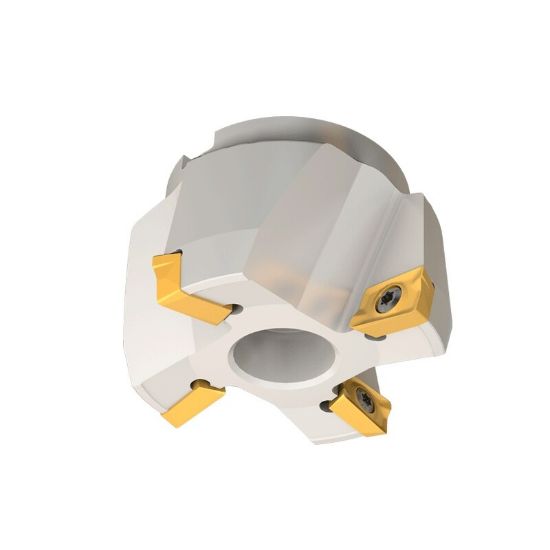

ISCAR F75A D5.00-1.50-M* Milling Cutter 75.0° 5.000 Diameter Face Mill 1.500 2.300 OAL 7 Flute

ANSI: F75A D5.00-1.50-M*

ISO: F75A D5.00-1.50-M*

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100200
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 5.0000 127.00MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 7
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 5.0000 127.00MM
Tool Material Steel
Overall Len 2.3000 58.42MM
Depth Of Cut Max 0.2700
Cut Dia Min 5.0000 127.00MM
Cutting & Machining Properties
Cool Sply Type External
Insert Style AD
Coolant Thru No
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 7000216
