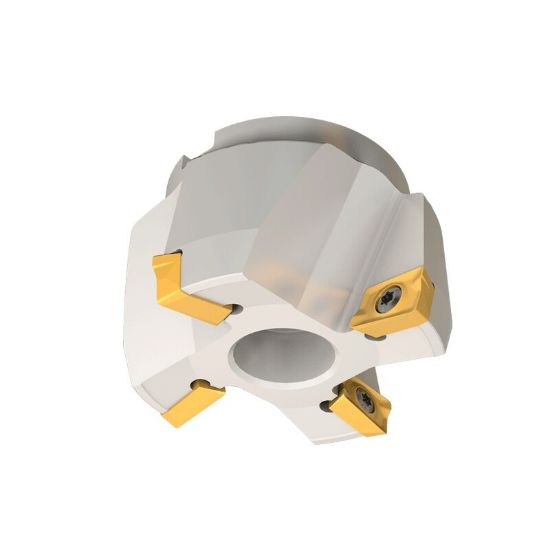

Picture of ISCAR F75A D4.00-1.50-M Milling Cutter 75.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

ISCAR F75A D4.00-1.50-M Milling Cutter 75.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

ANSI: F75A D4.00-1.50-M

ISO: F75A D4.00-1.50-M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100170
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.2700
Cutter Dia 4.0000 101.60MM
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 6
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Insert Style AD
Insert Shape/Cutter Pocket Shape Other
Coolant Thru No
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7000216
