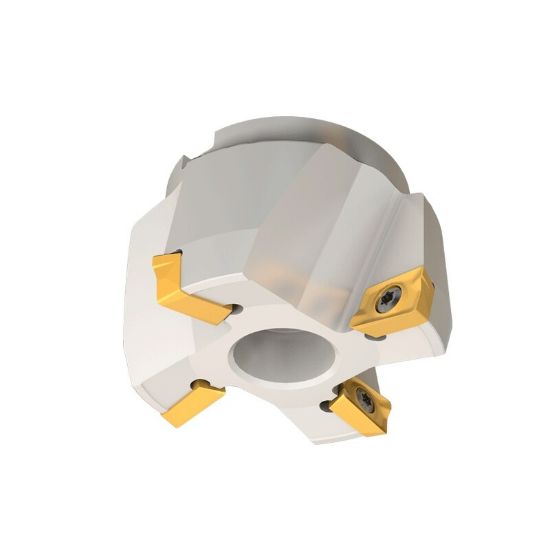

Picture of ISCAR F75A D2.50-1.00-M * Milling Cutter 75.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

ISCAR F75A D2.50-1.00-M * Milling Cutter 75.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

ANSI: F75A D2.50-1.00-M *

ISO: F75A D2.50-1.00-M *

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100255
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Face Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2700
Tool Material Steel
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 4
Cutter Dia 2.5000 63.50MM - 2-1/2
Overall Len 1.7500 44.45MM
Insert Size Ic 15
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru No
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Other
Insert Style AD
Fasteners & Connectors
Insert Screw 7000216
