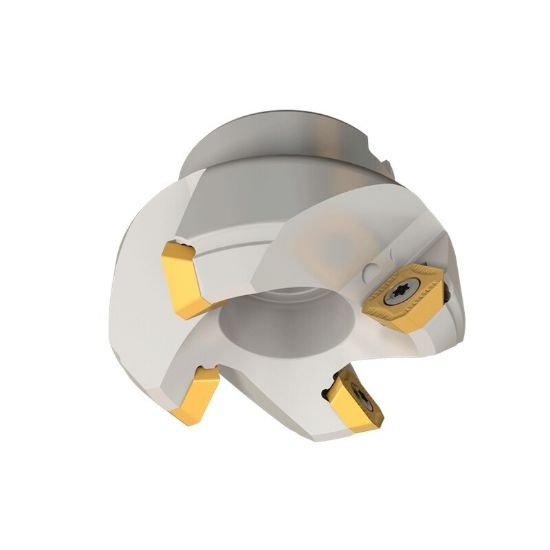

Picture of ISCAR F45ST D6.00-2.00 Milling Cutter 45.0° 6.000 Diameter Face Mill 2.000 2.000 OAL 8 Flute

ISCAR F45ST D6.00-2.00 Milling Cutter 45.0° 6.000 Diameter Face Mill 2.000 2.000 OAL 8 Flute

ANSI: F45ST D6.00-2.00

ISO: F45ST D6.00-2.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100391
Delivery date: 3-5 days
$1,171.20
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Finishing, Semi Finishing
Package Size 1
Shipping State Texas
Made In USA No
Insert Type Positive
Application Face Milling
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 2.0000 50.80MM
Cut Dia Min 6.0000 152.40MM
Insert Size Ic 12
Cutter Dia 6.0000 152.40MM
Depth Of Cut Max 0.4000
Cut Dia Max 6.4400 163.58MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Tool Material Steel
Flutes/Inserts 8
Cutting & Machining Properties
Insert Style SE
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Seat/Nest 5520183
Fasteners & Connectors
Seat Screw 7002005
Insert Screw 7002441
