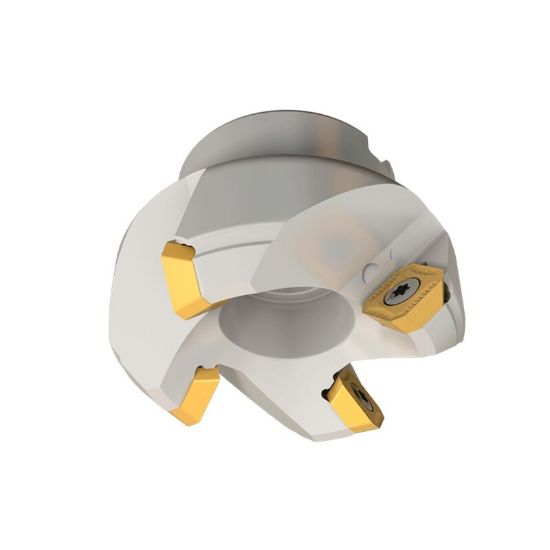

Picture of ISCAR F45ST D5.00-1.50 Milling Cutter 45.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 7 Flute

ISCAR F45ST D5.00-1.50 Milling Cutter 45.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 7 Flute

ANSI: F45ST D5.00-1.50

ISO: F45ST D5.00-1.50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100390
Delivery date: 3-5 days
$888.00
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Insert/Tool Tool
Insert Type Positive
Shipping State Texas
Dimensional Specifications
Insert Size Ic 12
Cutter Dia 5.0000 127.00MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 7
Cut Dia Max 5.4300 137.92MM
Cut Dia Min 5.0000 127.00MM
Depth Of Cut Max 0.2600
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru No
Insert Style SE
Seat/Nest 5520183
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Fasteners & Connectors
Seat Screw 7002005
Insert Screw 7002008
