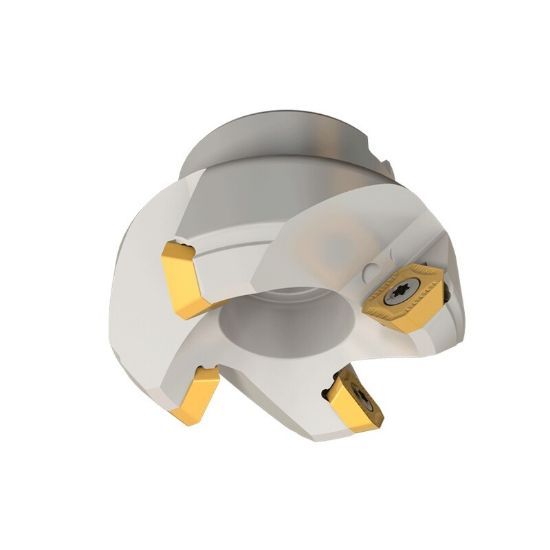

Picture of ISCAR F45ST D4.00-1.50 Milling Cutter 45.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

ISCAR F45ST D4.00-1.50 Milling Cutter 45.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

ANSI: F45ST D4.00-1.50

ISO: F45ST D4.00-1.50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100369
Delivery date: 3-5 days
$696.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application Roughing, Finishing, Semi Finishing
Insert Type Positive
Application Face Milling
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 2.0000 50.80MM
Insert Size Ic 12
Depth Of Cut Max 0.2600
Cutter Dia 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Cut Dia Min 4.0000 101.60MM
Cut Dia Max 4.4000 111.76MM
Flutes/Inserts 6
Cutting & Machining Properties
Coolant Thru No
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Seat/Nest 5520183
Fasteners & Connectors
Insert Screw 7002008
Seat Screw 7002005
