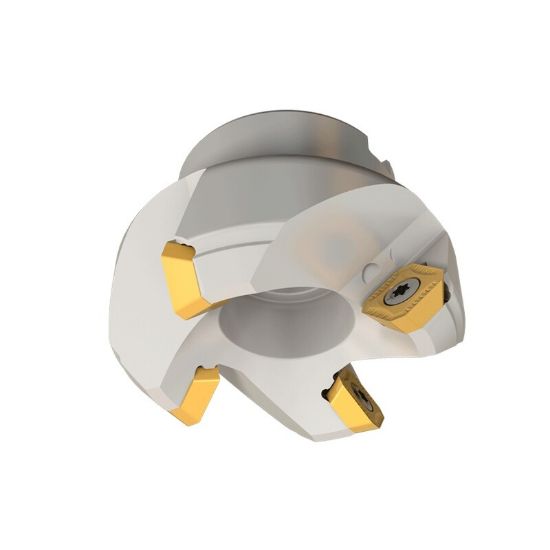

Picture of ISCAR F45ST D3.00-1.00 Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ISCAR F45ST D3.00-1.00 Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ANSI: F45ST D3.00-1.00

ISO: F45ST D3.00-1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100368
Delivery date: 3-5 days
$602.88

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Shipping State Texas
Insert Type Positive
Made In USA No
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 3.0000 76.20MM
Cut Dia Max 3.5100 89.15MM
Tool Material Steel
Overall Len 1.7500 44.45MM
Cutter Dia 3.0000 76.20MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2600
Flutes/Inserts 5
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Seat/Nest 5520183
Coolant Thru No
Insert Style SE
Fasteners & Connectors
Insert Screw 7002008
Seat Screw 7002005
