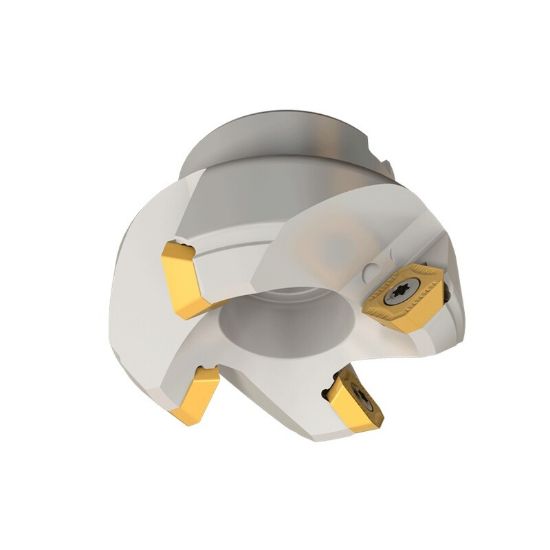

Picture of ISCAR F45ST D2.50-1.00 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ISCAR F45ST D2.50-1.00 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ANSI: F45ST D2.50-1.00

ISO: F45ST D2.50-1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100367
Delivery date: 3-5 days
$562.56

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Application Face Milling
Dimensional Specifications
Overall Len 1.7500 44.45MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 12
Depth Of Cut Max 0.2600
Cutter Dia 2.5000 63.50MM - 2-1/2
Cut Dia Max 2.9800 75.69MM
Tool Material Steel
Flutes/Inserts 5
Cutting & Machining Properties
Seat/Nest 5520183
Coolant Thru No
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002008
Seat Screw 7002005
