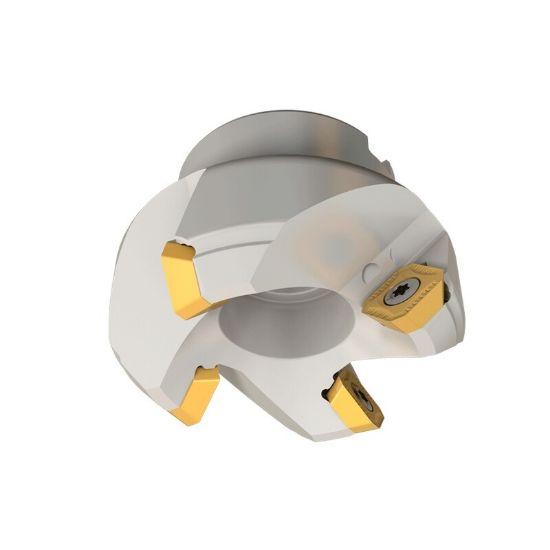

Picture of ISCAR F45ST D2.00- .75 Milling Cutter 45.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 4 Flute

ISCAR F45ST D2.00- .75 Milling Cutter 45.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 4 Flute

ANSI: F45ST D2.00- .75

ISO: F45ST D2.00- .75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100366
Delivery date: 3-5 days
$460.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing, Finishing
Shipping State Texas
Insert/Tool Tool
Made In USA No
Insert Type Positive
Application Face Milling
Dimensional Specifications
Insert Size Ic 12
Flutes/Inserts 4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.7500 44.45MM
Depth Of Cut Max 0.2600
Cut Dia Min 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.4700 62.74MM
Cutting & Machining Properties
Coolant Thru No
Seat/Nest 5520183
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002008
Seat Screw 7002005
