  • ISCAR F45NM D6.0-15-2.00-R08 Milling Cutter 44.3° 6.000 Diameter Face Mill 2.000 2.000 OAL 15 Flute

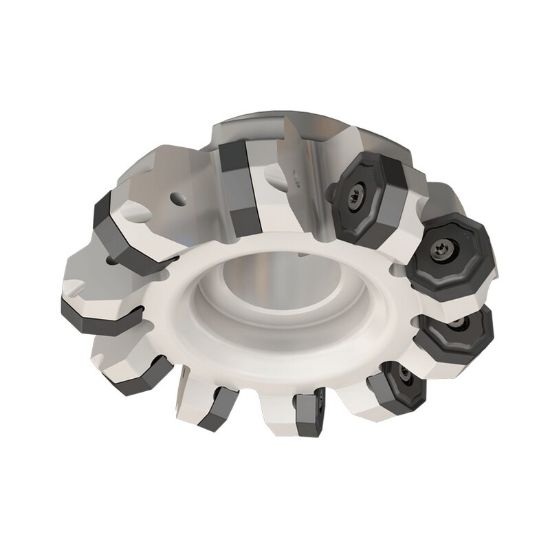

Picture of ISCAR F45NM D6.0-15-2.00-R08 Milling Cutter 44.3° 6.000 Diameter Face Mill 2.000 2.000 OAL 15 Flute

ISCAR F45NM D6.0-15-2.00-R08 Milling Cutter 44.3° 6.000 Diameter Face Mill 2.000 2.000 OAL 15 Flute

ANSI: F45NM D6.0-15-2.00-R08

ISO: F45NM D6.0-15-2.00-R08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105050
Delivery date: 3-5 days
$1,814.40

Details

16 CORNER GENERAL PURPOSE MILL. GREAT FOR ALL KINDS OF MATERIALS AND APLICATIONS FROM ROUGHING TO FINISHING.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 6.4900 164.85MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Machine Side Connection Size 2.0000 50.80MM
Flutes/Inserts 15
Depth Of Cut Max 0.2200
Cut Dia Min 6.0000 152.40MM
Cutter Dia 6.0000 152.40MM
Insert Size Ic 16
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Octagonal
Coolant Thru No
Cool Sply Type External
Insert Style ON
Fasteners & Connectors
Insert Screw 7004610
