  • ISCAR F45LN D5.00-09-1.50-R-N15 Milling Cutter 45.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

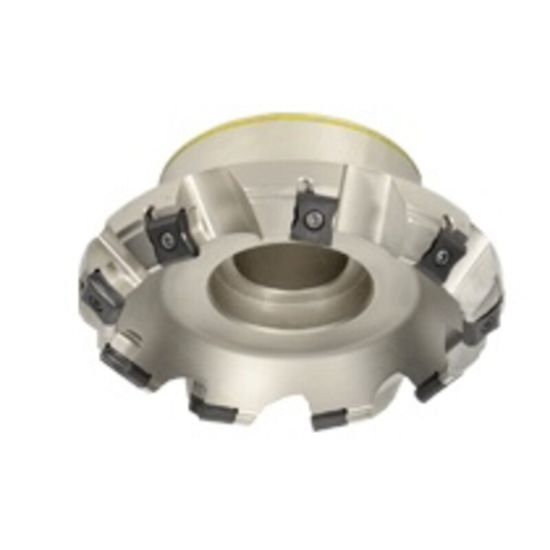

Picture of ISCAR F45LN D5.00-09-1.50-R-N15 Milling Cutter 45.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

ISCAR F45LN D5.00-09-1.50-R-N15 Milling Cutter 45.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

ANSI: F45LN D5.00-09-1.50-R-N15

ISO: F45LN D5.00-09-1.50-R-N15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102630
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Application Face Milling
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 15
Depth Of Cut Max 0.3000
Cut Dia Max 5.7900 147.07MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Tool Material Steel
Cut Dia Min 5.0000 127.00MM
Flutes/Inserts 9
Cutter Dia 5.0000 127.00MM
Cutting & Machining Properties
Coolant Thru No
Insert Style LN
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Rectagonal
Fasteners & Connectors
Insert Screw 7002377
