  • ISCAR F45LN D4.00-08-1.50-R-N15 Milling Cutter 45.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

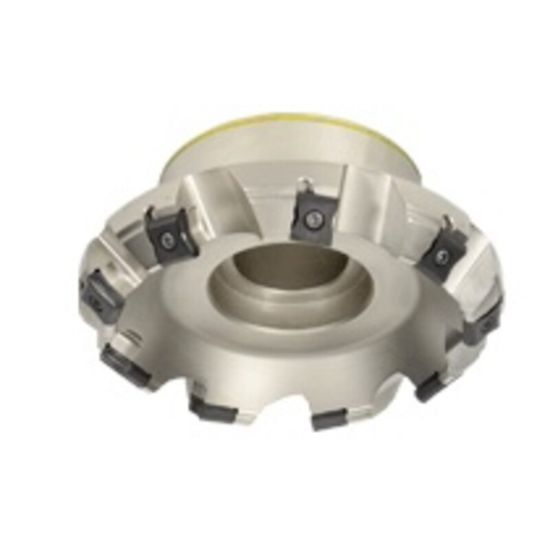

Picture of ISCAR F45LN D4.00-08-1.50-R-N15 Milling Cutter 45.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ISCAR F45LN D4.00-08-1.50-R-N15 Milling Cutter 45.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ANSI: F45LN D4.00-08-1.50-R-N15

ISO: F45LN D4.00-08-1.50-R-N15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102622
Delivery date: 3-5 days
$932.16

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing, Finishing
Shipping State Texas
Package Size 1
Application Face Milling
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 8
Cut Dia Min 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 15
Depth Of Cut Max 0.3000
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutter Dia 4.0000 101.60MM
Cut Dia Max 4.8000 121.92MM
Cutting & Machining Properties
Insert Style LN
Coolant Thru No
Insert Shape/Cutter Pocket Shape Rectagonal
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002377
