  • ISCAR F45LN D3.00-06-1.00-R-N15 Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 6 Flute

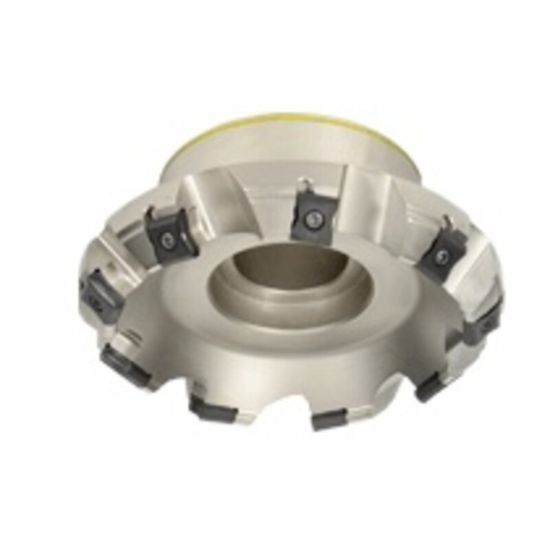

Picture of ISCAR F45LN D3.00-06-1.00-R-N15 Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 6 Flute

ISCAR F45LN D3.00-06-1.00-R-N15 Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 6 Flute

ANSI: F45LN D3.00-06-1.00-R-N15

ISO: F45LN D3.00-06-1.00-R-N15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102754
Delivery date: 3-5 days
$814.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 3.7900 96.27MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Insert Size Ic 15
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 3.0000 76.20MM
Depth Of Cut Max 0.6220
Flutes/Inserts 6
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru No
Insert Style LN
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002281
