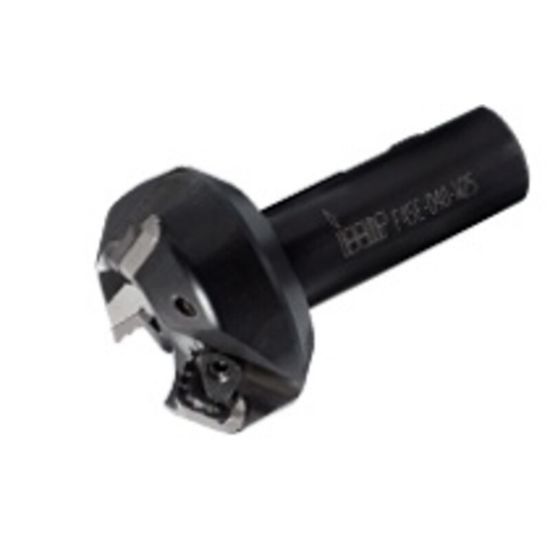

Picture of ISCAR F45E D1.00-W.75 Milling Cutter 45.0° 1.000 Diameter Weldon 0.750 3.500 OAL 2 Flute

ISCAR F45E D1.00-W.75 Milling Cutter 45.0° 1.000 Diameter Weldon 0.750 3.500 OAL 2 Flute

ANSI: F45E D1.00-W.75

ISO: F45E D1.00-W.75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100022
Delivery date: 3-5 days
$369.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Application Chamfering
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.2560
Overall Len 3.5000 88.90MM
Cut Dia Max 2.7000 68.58MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Insert Size Ic 42
Cutter Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Insert Style SE
Coolant Thru No
Fasteners & Connectors
Clamp/Wedge 4300063
