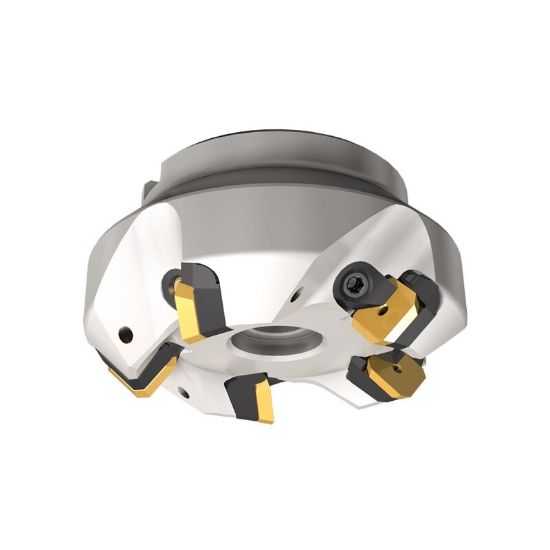

Picture of ISCAR F45E D 4.0 -1.50 Milling Cutter 45.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

ISCAR F45E D 4.0 -1.50 Milling Cutter 45.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

ANSI: F45E D 4.0 -1.50

ISO: F45E D 4.0 -1.50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100036
Delivery date: 3-5 days
$928.32

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Shipping State Texas
Insert Type Positive
Application Face Milling
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Flutes/Inserts 6
Cut Dia Min 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.2560
Cutter Dia 4.0000 101.60MM
Tool Material Steel
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Insert Size Ic 42
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Insert Style SE
Seat/Nest 4300095
Coolant Thru No
Fasteners & Connectors
Clamp Screw 7000238
Clamp/Wedge 7002064
