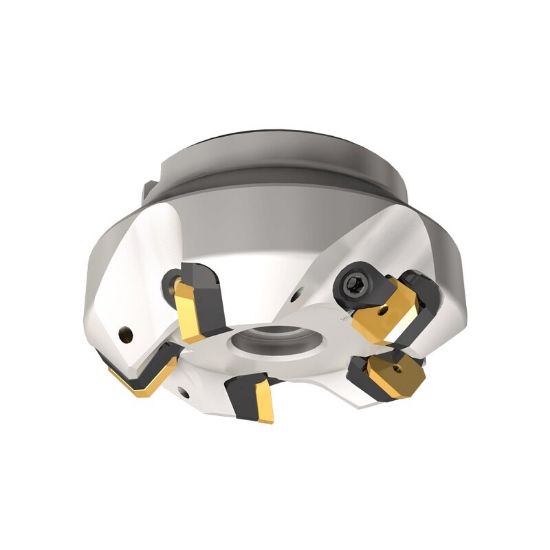

Picture of ISCAR F45E D 2.5 -1.00 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ISCAR F45E D 2.5 -1.00 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ANSI: F45E D 2.5 -1.00

ISO: F45E D 2.5 -1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100027
Delivery date: 3-5 days
$627.84

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Finishing, Roughing
Shipping State Texas
Application Face Milling
Package Size 1
Insert Type Positive
Made In USA No
Dimensional Specifications
Cut Dia Max 2.5000 63.50MM - 2-1/2
Tool Material Steel
Depth Of Cut Max 0.2560
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 42
Overall Len 1.7500 44.45MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Flutes/Inserts 5
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Coolant Thru No
Seat/Nest 4300095
Insert Style SE
Fasteners & Connectors
Clamp Screw 7000238
Clamp/Wedge 7002064
