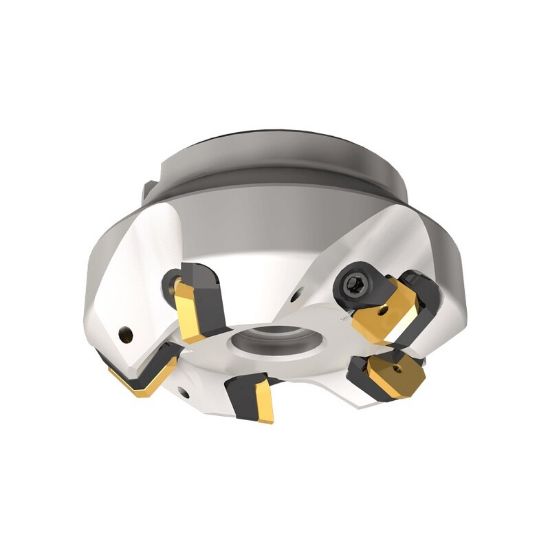

Picture of ISCAR F45E D 2.0- .75 Milling Cutter 45.0° 2.000 Diameter Face Mill 0.750 1.700 OAL 4 Flute

ISCAR F45E D 2.0- .75 Milling Cutter 45.0° 2.000 Diameter Face Mill 0.750 1.700 OAL 4 Flute

ANSI: F45E D 2.0- .75

ISO: F45E D 2.0- .75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100026
Delivery date: 3-5 days
$567.36

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert/Tool Tool
Insert Type Positive
Application Face Milling
Shipping State Texas
Package Size 1
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Overall Len 1.7000 43.18MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 42
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 4
Depth Of Cut Max 0.2560
Cutting & Machining Properties
Seat/Nest 4300095
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Coolant Thru No
Insert Style SE
Fasteners & Connectors
Clamp/Wedge 7002064
Clamp Screw 7000238
