  • ISCAR ERW D103A150-A-4-C1.25-12 Milling Cutter Button Cutter 1.030 Diameter Round 1.250 10.00 OAL 4 Flute

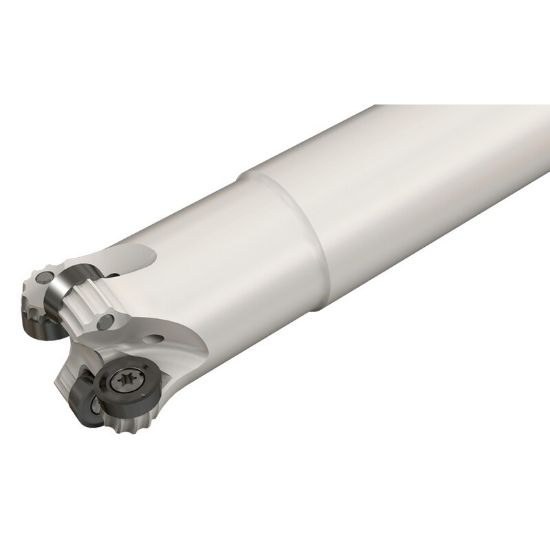

Picture of ISCAR ERW D103A150-A-4-C1.25-12 Milling Cutter Button Cutter 1.030 Diameter Round 1.250 10.00 OAL 4 Flute

ISCAR ERW D103A150-A-4-C1.25-12 Milling Cutter Button Cutter 1.030 Diameter Round 1.250 10.00 OAL 4 Flute

ANSI: ERW D103A150-A-4-C1.25-12

ISO: ERW D103A150-A-4-C1.25-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105170
Delivery date: 3-5 days
$561.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Round Milling, Pocket Milling, Ramp Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Made In USA No
Insert Type Positive
Dimensional Specifications
Cutter Dia 1.0300 26.16MM
Cut Dia Min 1.0300 26.16MM
Machine Side Connection Type Weldon
Overall Len 10.0000 254.00MM
Cut Dia Max 1.5000 38.10MM - 1-1/2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.2360
Insert Size Ic 12
Flutes/Inserts 4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
Insert Style RC
Cool Sply Type Through Hole
Max Ramp Angle 5.00°
Fasteners & Connectors
Insert Screw 7001990
