  • ISCAR ERW D103A150-4-M16-12 Milling Cutter Button Cutter 1.030 Diameter Screw On M16 2.560 OAL 4 Flute

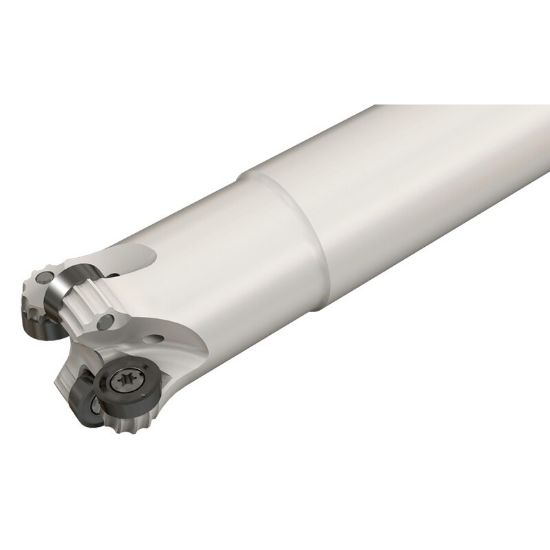

Picture of ISCAR ERW D103A150-4-M16-12 Milling Cutter Button Cutter 1.030 Diameter Screw On M16 2.560 OAL 4 Flute

ISCAR ERW D103A150-4-M16-12 Milling Cutter Button Cutter 1.030 Diameter Screw On M16 2.560 OAL 4 Flute

ANSI: ERW D103A150-4-M16-12

ISO: ERW D103A150-4-M16-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105111
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Shipping State Texas
Made In USA No
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size M16
Insert Size Ic 12
Flutes/Inserts 4
Overall Len 2.5600 65.02MM
Cut Dia Min 1.0300 26.16MM
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Screw On
Depth Of Cut Max 0.2360
Tool Material Steel
Cutter Dia 1.0300 26.16MM
Cutting & Machining Properties
Insert Style RC
Coolant Thru Yes
Cool Sply Type Through Hole
Max Ramp Angle 5.00°
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 7002495
