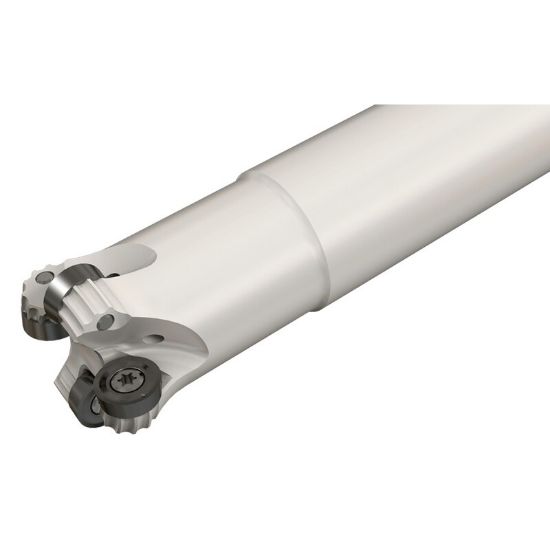

Picture of ISCAR ERW D078A125-B-3-C1.25-12 Milling Cutter Button Cutter 0.780 Diameter Round 1.250 12.00 OAL 3 Flute

ISCAR ERW D078A125-B-3-C1.25-12 Milling Cutter Button Cutter 0.780 Diameter Round 1.250 12.00 OAL 3 Flute

ANSI: ERW D078A125-B-3-C1.25-12

ISO: ERW D078A125-B-3-C1.25-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105171
Delivery date: 3-5 days
$495.36

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Pocket Milling, Ramp Milling, Face Milling
Made In USA No
Shipping State Texas
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 0.7800 19.81MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 12.0000 304.80MM
Flutes/Inserts 3
Cut Dia Min 0.7800 19.81MM
Machine Side Connection Type Weldon
Insert Size Ic 12
Cut Dia Max 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.2360
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Insert Style RC
Cool Sply Type Through Hole
Max Ramp Angle 7.00°
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7001990
