  • ISCAR ERW D078A125-A-3-C1.00-12 Milling Cutter Button Cutter 0.780 Diameter Round 1.000 8.000 OAL 3 Flute

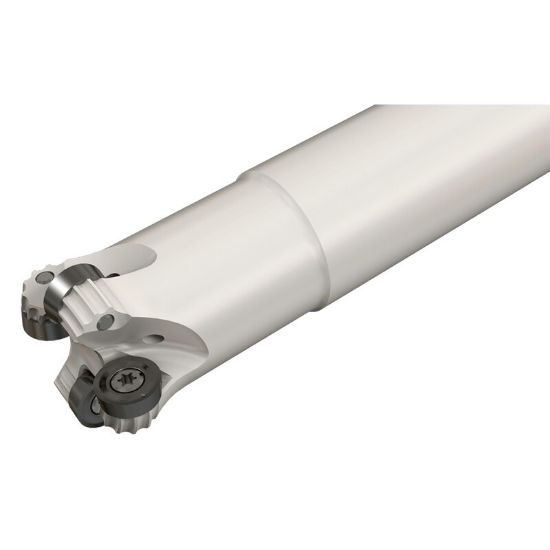

Picture of ISCAR ERW D078A125-A-3-C1.00-12 Milling Cutter Button Cutter 0.780 Diameter Round 1.000 8.000 OAL 3 Flute

ISCAR ERW D078A125-A-3-C1.00-12 Milling Cutter Button Cutter 0.780 Diameter Round 1.000 8.000 OAL 3 Flute

ANSI: ERW D078A125-A-3-C1.00-12

ISO: ERW D078A125-A-3-C1.00-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105172
Delivery date: 3-5 days
$467.52

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Type Positive
Application Face Milling, Ramp Milling, Round Milling, Pocket Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Overall Len 8.0000 203.20MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 0.7800 19.81MM
Flutes/Inserts 3
Insert Size Ic 12
Cut Dia Max 1.2500 31.75MM - 1-1/4
Cut Dia Min 0.7800 19.81MM
Depth Of Cut Max 0.2360
Tool Material Steel
Cutting & Machining Properties
Cool Sply Type Through Hole
Max Ramp Angle 7.00°
Coolant Thru Yes
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 7066668
