  • ISCAR ERW D022A032-4-M16-10 Milling Cutter Button Cutter 1.260 Diameter Screw On M16 2.165 OAL 4 Flute

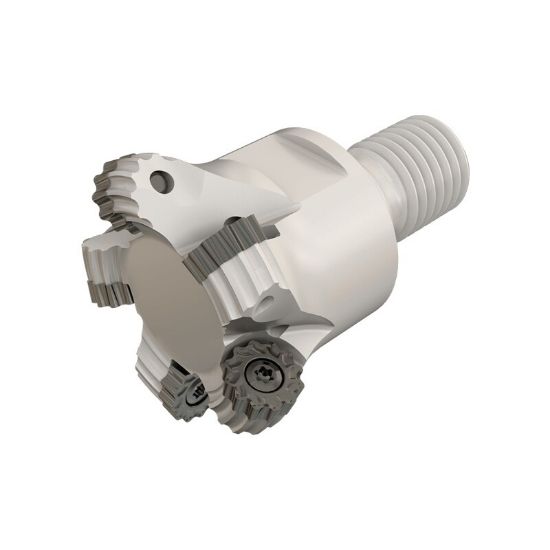

Picture of ISCAR ERW D022A032-4-M16-10 Milling Cutter Button Cutter 1.260 Diameter Screw On M16 2.165 OAL 4 Flute

ISCAR ERW D022A032-4-M16-10 Milling Cutter Button Cutter 1.260 Diameter Screw On M16 2.165 OAL 4 Flute

ANSI: ERW D022A032-4-M16-10

ISO: ERW D022A032-4-M16-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106282
Delivery date: 3-5 days
$413.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Face Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Cutter Dia 1.2600 32.00MM
Cut Dia Min 0.8660 22.00MM
Machine Side Connection Size M16
Insert Size Ic 10
Overall Len 2.1650 54.99MM
Flutes/Inserts 4
Machine Side Connection Type Screw On
Depth Of Cut Max 0.1970
Cut Dia Max 1.2600 32.00MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 4.00°
Insert Style RC
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 7002024
