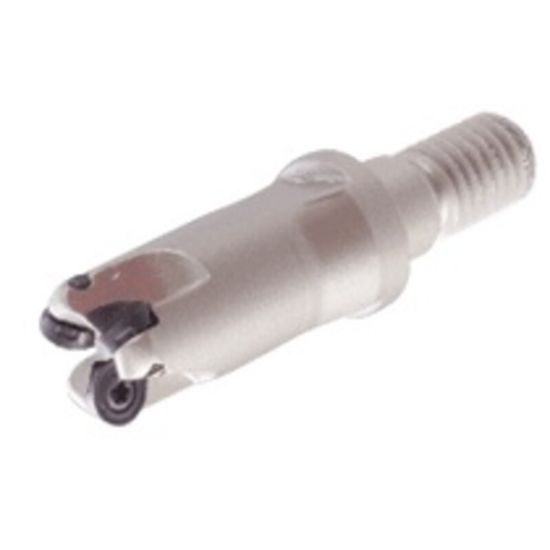

Picture of ISCAR ERCM D1.50-M16-CP.50 Milling Cutter Button Cutter 1.500 Diameter Screw On M16 3 Flute

ISCAR ERCM D1.50-M16-CP.50 Milling Cutter Button Cutter 1.500 Diameter Screw On M16 3 Flute

ANSI: ERCM D1.50-M16-CP.50

ISO: ERCM D1.50-M16-CP.50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101233
Delivery date: 3-5 days
$370.56

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Pocket Milling, Ramp Milling
Shipping State Texas
Insert Type Positive
Package Size 1
Made In USA No
Dimensional Specifications
Cut Dia Min 1.0000 25.40MM
Insert Size Ic 43
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.2400
Tool Material Steel
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Coolant Thru No
Max Ramp Angle 6.50°
Insert Style R90
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7001831
