  • ISCAR ERCM D1.50-C1.25CP12 Milling Cutter Button Cutter 1.500 Diameter Round 1.250 8.000 OAL 3 Flute

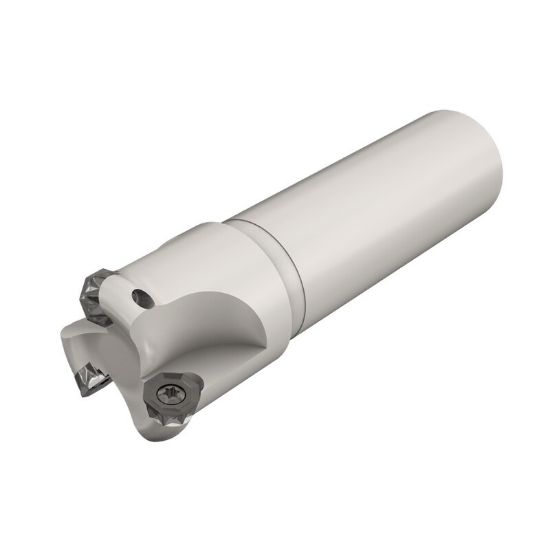

Picture of ISCAR ERCM D1.50-C1.25CP12 Milling Cutter Button Cutter 1.500 Diameter Round 1.250 8.000 OAL 3 Flute

ISCAR ERCM D1.50-C1.25CP12 Milling Cutter Button Cutter 1.500 Diameter Round 1.250 8.000 OAL 3 Flute

ANSI: ERCM D1.50-C1.25CP12

ISO: ERCM D1.50-C1.25CP12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101342
Delivery date: 3-5 days
$477.12

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Round Milling, Ramp Milling, Pocket Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Insert Size Ic 43
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Overall Len 8.0000 203.20MM
Depth Of Cut Max 0.2400
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Round
Insert Style R90
Cool Sply Type External
Max Ramp Angle 6.00°
Fasteners & Connectors
Insert Screw 7000219
