  • ISCAR ER D087A150-3-C1.25-16 Milling Cutter Button Cutter 0.870 Diameter Round 1.250 6.300 OAL 3 Flute

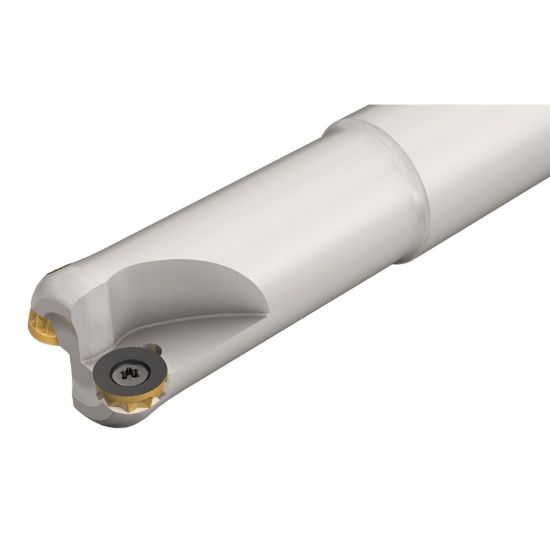

Picture of ISCAR ER D087A150-3-C1.25-16 Milling Cutter Button Cutter 0.870 Diameter Round 1.250 6.300 OAL 3 Flute

ISCAR ER D087A150-3-C1.25-16 Milling Cutter Button Cutter 0.870 Diameter Round 1.250 6.300 OAL 3 Flute

ANSI: ER D087A150-3-C1.25-16

ISO: ER D087A150-3-C1.25-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103193
Delivery date: 3-5 days
$353.28

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Pocket Milling, Face Milling
Insert/Tool Tool
Made In USA No
Shipping State Texas
Insert Type Positive
Package Size 1
Dimensional Specifications
Cutter Dia 0.8700 22.10MM
Cut Dia Min 0.8700 22.10MM
Machine Side Connection Type Weldon
Tool Material Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Machine Side Connection Size 1.2500 31.75MM
Overall Len 6.3000 160.02MM
Insert Size Ic 16
Depth Of Cut Max 0.3940
Cut Dia Max 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Style RC
Coolant Thru No
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Ball
Fasteners & Connectors
Insert Screw 7002495
