  • ISCAR ER D087A125-4-C1.00-.38 Milling Cutter Button Cutter 0.870 Diameter Round 1.000 6.500 OAL 4 Flute

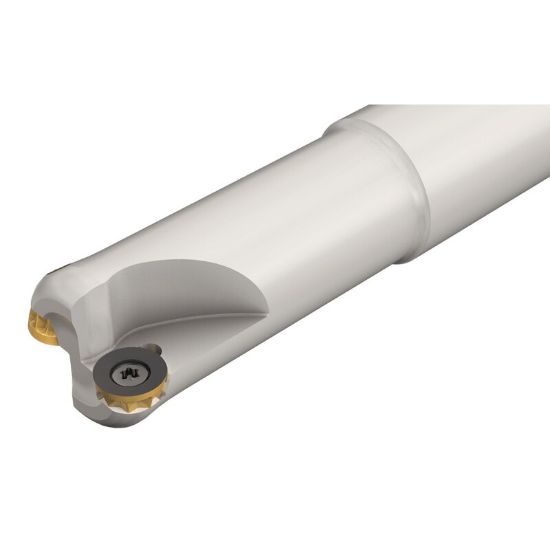

Picture of ISCAR ER D087A125-4-C1.00-.38 Milling Cutter Button Cutter 0.870 Diameter Round 1.000 6.500 OAL 4 Flute

ISCAR ER D087A125-4-C1.00-.38 Milling Cutter Button Cutter 0.870 Diameter Round 1.000 6.500 OAL 4 Flute

ANSI: ER D087A125-4-C1.00-.38

ISO: ER D087A125-4-C1.00-.38

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102047
Delivery date: 3-5 days
$366.72

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Application Ramp Milling, Round Milling, Face Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.1900
Overall Len 6.5000 165.10MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 0.8700 22.10MM
Cut Dia Min 0.8700 22.10MM
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Insert Size Ic 32
Tool Material Steel
Cutting & Machining Properties
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Round
Insert Style RX
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000894
