  • ISCAR ER D038A075-2-C.75-.38 Milling Cutter Button Cutter 0.380 Diameter Weldon 0.750 6.500 OAL 2 Flute

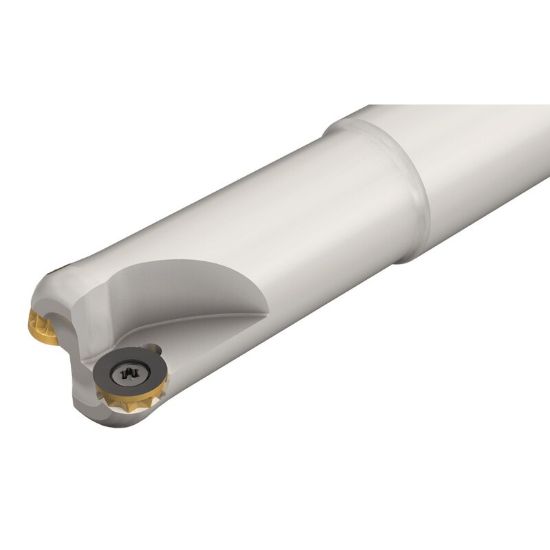

Picture of ISCAR ER D038A075-2-C.75-.38 Milling Cutter Button Cutter 0.380 Diameter Weldon 0.750 6.500 OAL 2 Flute

ISCAR ER D038A075-2-C.75-.38 Milling Cutter Button Cutter 0.380 Diameter Weldon 0.750 6.500 OAL 2 Flute

ANSI: ER D038A075-2-C.75-.38

ISO: ER D038A075-2-C.75-.38

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102045
Delivery date: 3-5 days
$216.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Round Milling, Ramp Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Made In USA No
Insert Type Positive
Dimensional Specifications
Insert Size Ic 32
Cut Dia Min 0.3800 9.65MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Tool Material Steel
Depth Of Cut Max 0.1900
Cutter Dia 0.3800 9.65MM
Machine Side Connection Size 0.7500 19.05MM
Overall Len 6.5000 165.10MM
Flutes/Inserts 2
Cut Dia Max 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Cool Sply Type External
Insert Style RX
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002353
