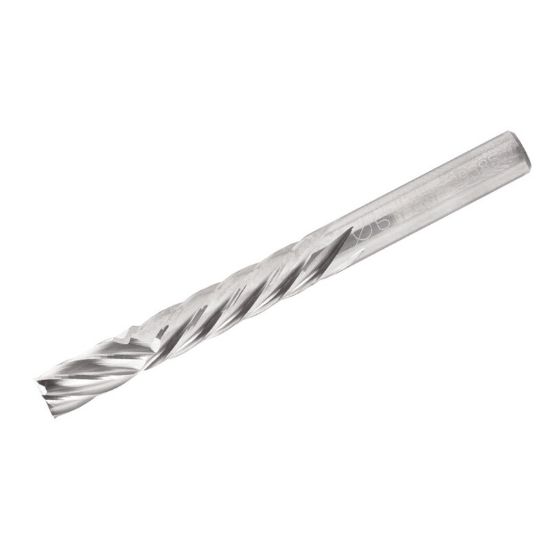

ISCAR EPXI-F8 500-1.0C500F3.5 IC02 DIA 1/2 SH 0.50 LOC 0.3420 OAL 3.50 End Mill Carbide Uncoated Single End Square SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622885
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Performance Rating High Performance
Package Size 1
Made In USA No
Application Side Milling, Slot Milling, Vacume Table Milling
Dimensional Specifications
Dimension Description 0.500 x 0.500 x 0.342 x 3.500
Flutes/Inserts 8
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Length Of Cut 0.3420 8.69MM
Cut Rating <53HRC Steel
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cutter Style Compresion Cut
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
