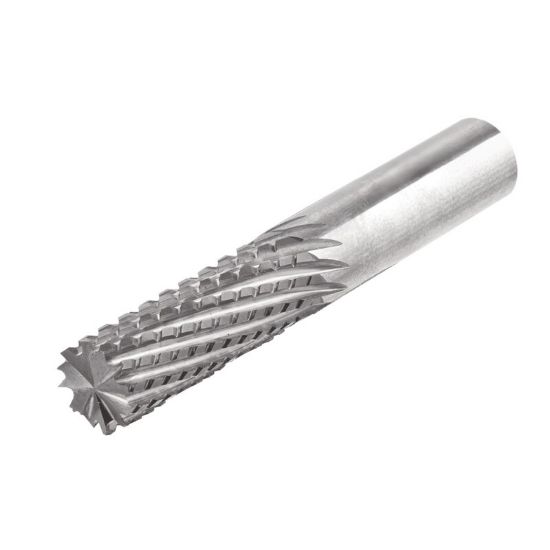

ISCAR EPNI-F10 250-750C250F3.0 IC02 DIA 1/4 SH 0.2500 LOC 0.7500 OAL 3.00 End Mill Carbide Uncoated Single End Square Sharp SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622864
Delivery date: 3-5 days
$36.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Made In USA No
Shipping State Texas
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Single/Double End Single End
Overall Len 3.0000 76.20MM
Cut Rating <53HRC Steel
Length Type Standard
Flutes/Inserts 10
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Carbide Rougher
Inch/Metric Inch
Helix Angle 15°
Cutter Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Square
Dimension Description 0.250 x 0.250 x 0.750 x 3.000
Length Of Cut 0.7500 19.05MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
