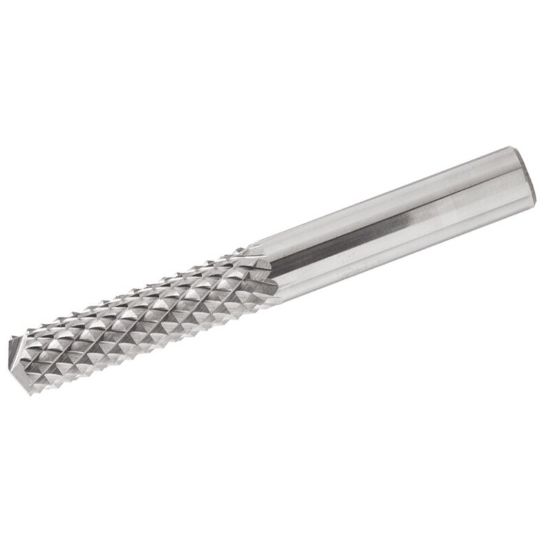

ISCAR EPNDI-C8 125-500C125F2.* IC02 DIA 1/8 SH 0.1250 LOC 0.50 OAL 2.00 End Mill Carbide Uncoated Single End Square Sharp SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622890
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Performance Rating High Performance
Package Size 1
Shipping State Texas
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Single/Double End Single End
End Of Tool Shape Square
Cutter Style Carbide Rougher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flutes/Inserts 8
Inch/Metric Inch
Dimension Description 0.125 x 0.125 x 0.500 x 2.000
Cutter Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.5000 12.70MM
Cut Rating <53HRC Steel
Machine Side Connection Size 0.1250 3.18MM
Overall Len 2.0000 50.80MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
Agricultural YES
