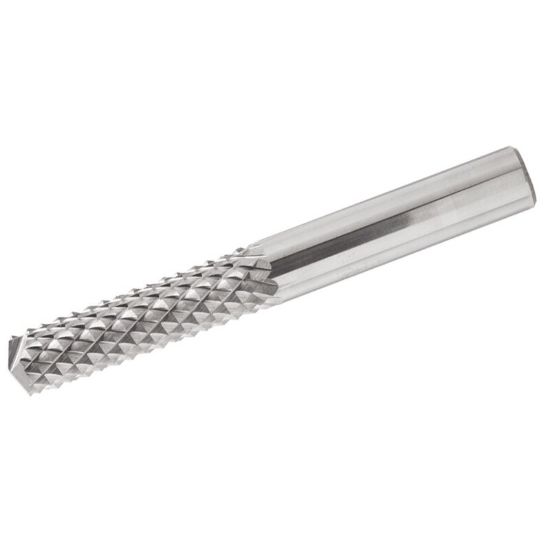

ISCAR EPNDI-C6 062-250C125F2. IC02 DIA 0.062 SH 0.1250 LOC 0.2500 OAL 2.00 End Mill Carbide Uncoated Single End Square Sharp SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622889
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Face Milling
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Dimension Description 0.062 x 0.125 x 0.250 x 2.000
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Rougher
Inch/Metric Inch
Length Of Cut 0.2500 6.35MM
End Of Tool Shape Square
Cut Rating <53HRC Steel
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Overall Len 2.0000 50.80MM
Length Type Standard
Cutter Dia 0.0620 1.57MM
Single/Double End Single End
Flutes/Inserts 6
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
