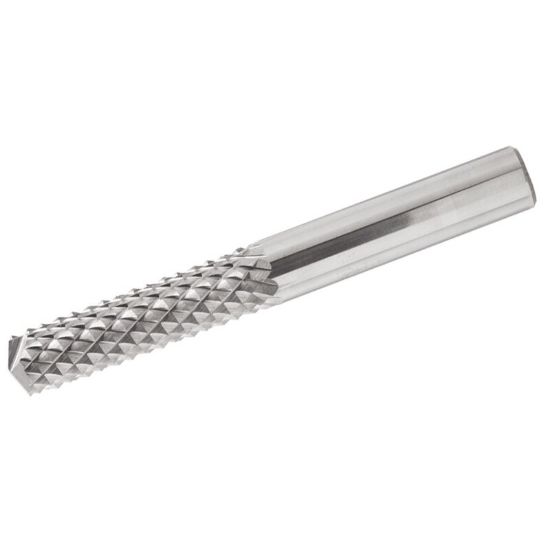

ISCAR EPNDI-C10 312-1.0C312F2.5 IC02 DIA 5/16 SH 0.3125 LOC 1.00 OAL 2.50 End Mill Carbide Uncoated Single End Square Sharp SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622886
Delivery date: 3-5 days
$42.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Made In USA No
Application Side Milling, Face Milling
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.3125 7.94MM - 5/16
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Cut Rating <53HRC Steel
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Flutes/Inserts 10
Dimension Description 0.313 x 0.313 x 1.000 x 2.500
End Of Tool Shape Square
Cutter Style Carbide Rougher
Overall Len 2.5000 63.50MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
