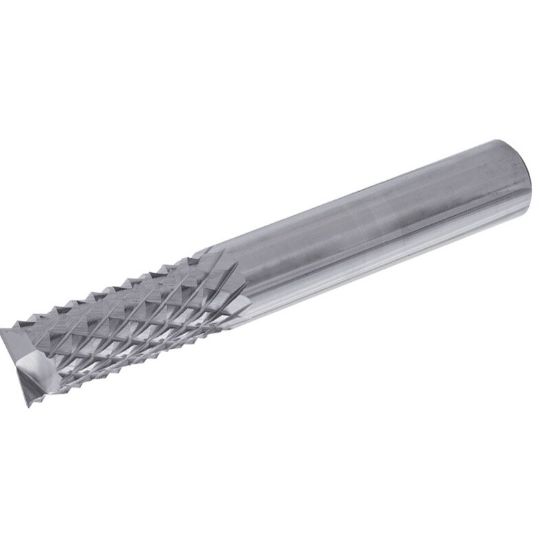

ISCAR EPNCI-C10 375-1.C375F3. IC02 DIA 3/8 SH 0.3750 LOC 1.00 OAL 3.00 End Mill Carbide Uncoated Single End Square Sharp SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622858
Delivery date: 3-5 days
$70.14

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Texas
Dimensional Specifications
Overall Len 3.0000 76.20MM
Flutes/Inserts 10
Cutter Dia 0.3750 9.53MM - 3/8
Single/Double End Single End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Cutter Style Carbide Rougher
Dimension Description 0.375 x 0.375 x 1.000 x 3.000
Cut Rating <53HRC Steel
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Agricultural YES
Energy Yes
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
