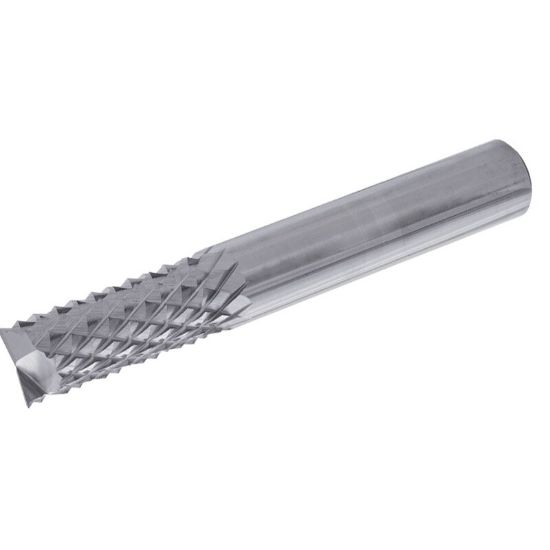

ISCAR EPNCI-C10 250-750C250F2.5 IC02 DIA 1/4 SH 0.2500 LOC 0.7500 OAL 2.00 End Mill Carbide Uncoated Single End Square Sharp SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622856
Delivery date: 3-5 days
$36.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Face Milling, Side Milling
Shipping State Texas
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Length Of Cut 0.7500 19.05MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Single/Double End Single End
Dimension Description 0.250 x 0.250 x 0.750 x 2.000
Machine Side Connection Type Cylindrical
Flutes/Inserts 10
Cutter Dia 0.2500 6.35MM - 1/4 - E
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Inch/Metric Inch
Cut Rating <53HRC Steel
Overall Len 2.0000 50.80MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
