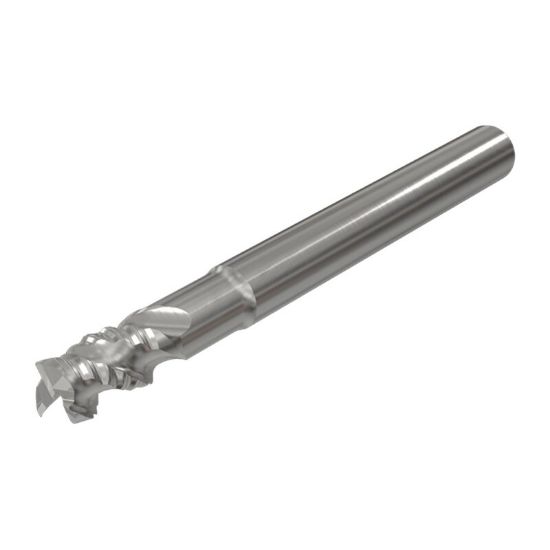

ISCAR ECRI-B3 625-562/1.69C625 IC08 DIA 5/8 SH 0.6250 LOC 0.5620 OAL 3.50 End Mill Carbide Uncoated Single End Corner Radius 0.0080 0.20MM Solid-SHRED

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622049
Delivery date: 3-5 days
$210.35

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Shipping State Texas
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 0.5620 14.27MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0080 0.20MM
Neck Length 1.6900 42.93MM
Length Type Standard
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Rougher
Inch/Metric Inch
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Dimension Description 0.625 x 0.625 x 0.562 x 3.500
Cutter Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
