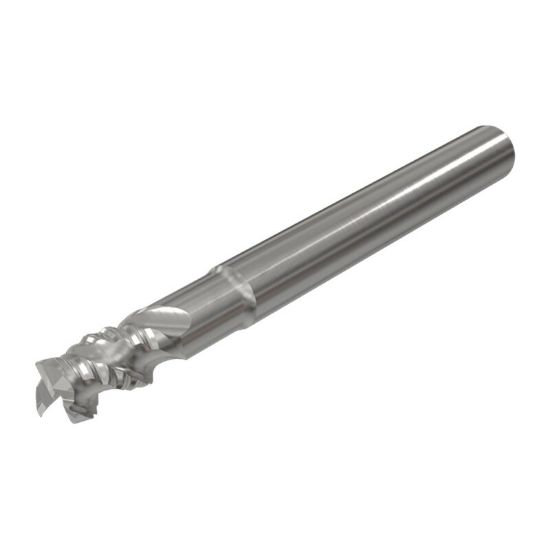

ISCAR ECRI-B3 500-500/1.50C500 IC08 DIA 1/2 SH 0.50 LOC 0.50 OAL 3.50 End Mill Carbide Uncoated Single End Corner Radius 0.0080 0.20MM Solid-SHRED

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622048
Delivery date: 3-5 days
$133.01

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Texas
Application Face Milling, Side Milling
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Dimension Description 0.500 x 0.500 x 0.500 x 3.500
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.0080 0.20MM
Neck Length 1.5000 38.10MM
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Cutter Style Carbide Rougher
End Of Tool Shape Corner Radius
Length Type Standard
Length Of Cut 0.5000 12.70MM
Helix Angle 45°
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
