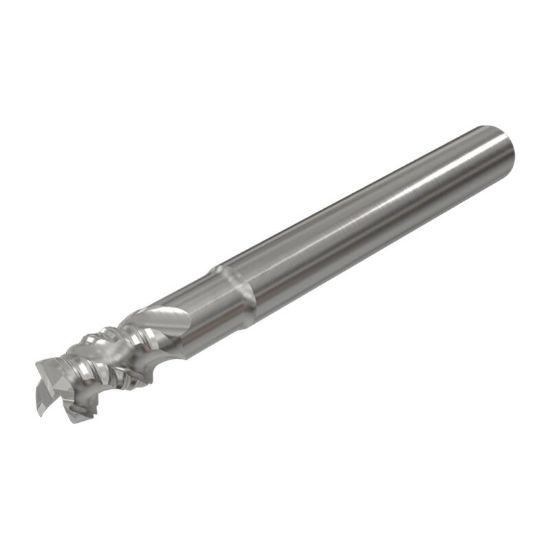

ISCAR ECRI-B3 312-500/1.12C312 IC08 DIA 5/16 SH 0.3125 LOC 0.50 OAL 2.50 End Mill Carbide Uncoated Single End Corner Radius 0.0080 0.20MM Solid-SHRED

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622046
Delivery date: 3-5 days
$72.23

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Shipping State Texas
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.5000 12.70MM
Dimension Description 0.313 x 0.313 x 0.500 x 2.500
Machine Side Connection Type Cylindrical
Corner Radius 0.0080 0.20MM
Cut Rating Aluminum, Graphite, Plastic
Neck Length 1.1200 28.45MM
Tool Material Carbide
Cutter Style Carbide Rougher
Inch/Metric Inch
Cutter Dia 0.3125 7.94MM - 5/16
Flutes/Inserts 3
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Helix Angle 45°
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
