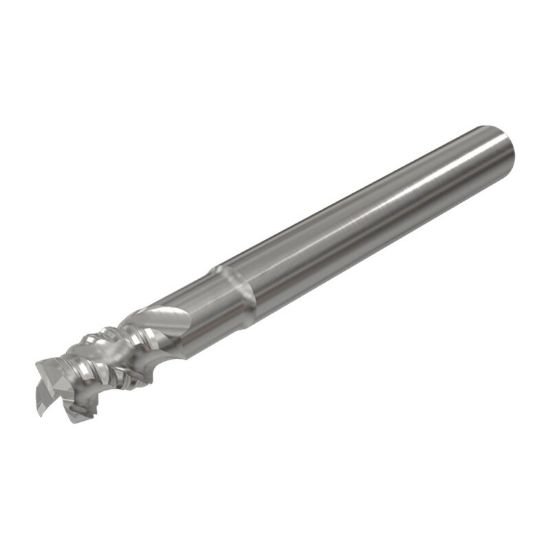

Picture of Iscar ECRI-B3 312-500/1.12C312 IC08 Dia 5/16 SH 0.3125 LOC 0.50 OAL2.50 End Mill Carbide Uncoated Single End Corner Radius0.0080 0.20mm Solid-SHRed

Iscar ECRI-B3 312-500/1.12C312 IC08 Dia 5/16 SH 0.3125 LOC 0.50 OAL2.50 End Mill Carbide Uncoated Single End Corner Radius0.0080 0.20mm Solid-SHRed

Part Number: ISC5622046 0.313 x 0.313 x 0.500 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289539
Vendor: Sussex Tool and Supply
$77.88
ISCAR ECRI-B3 312-500/1.12C312 IC08 End Mill Carbide Uncoated Corner Radius 0.0080 0.20MM Flutes 3 Single End SOLID-SHRED Carbide
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.3125 7.94MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 3
Tool Dia 0.3125 7.94MM - 5/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5000 12.70MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Rougher
Single/Double End Single End
Corner Radius 0.0080 0.20MM
Inch/Metric Inch
Helix Angle 45
Center Cutting Non Center Cutting
Neck Length 1.1200 28.45MM
