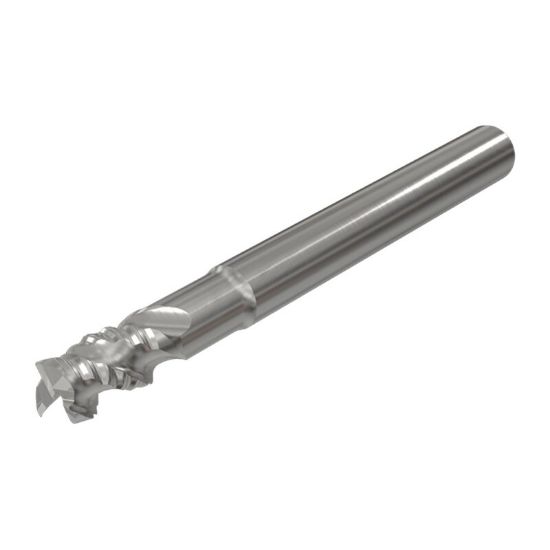

ISCAR ECRI-B3 250-375/.87C250 IC08 DIA 1/4 SH 0.2500 LOC 0.3750 OAL 2.50 End Mill Carbide Uncoated Single End Corner Radius 0.0080 0.20MM Solid-SHRED

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622045
Delivery date: 3-5 days
$59.01

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Application Side Milling, Face Milling
Shipping State Texas
Performance Rating High Performance
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Length Type Standard
Dimension Description 0.250 x 0.250 x 0.375 x 2.500
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cutter Dia 0.2500 6.35MM - 1/4 - E
Helix Angle 45°
Flutes/Inserts 3
Neck Length 0.8700 22.10MM
Length Of Cut 0.3750 9.53MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Carbide Rougher
Inch/Metric Inch
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting No
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
