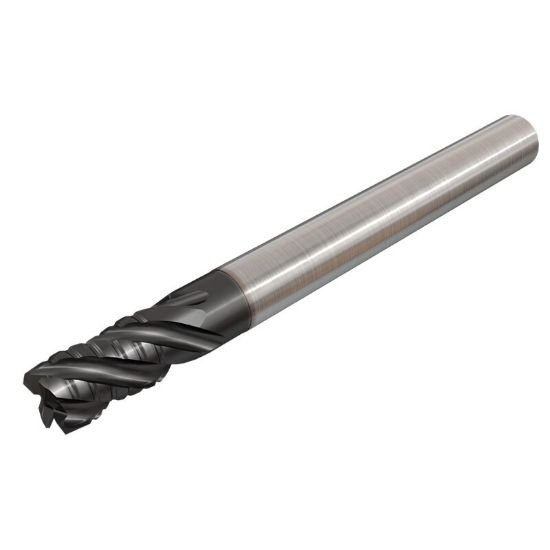

Picture of Iscar ECPI-E4L 625-1.25/1.7C625 IC900 Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End 45.0° Chamfer Solid-SHRed

Iscar ECPI-E4L 625-1.25/1.7C625 IC900 Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End 45.0° Chamfer Solid-SHRed

Part Number: ISC5622308 0.625 x 0.625 x 1.250 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1189378
Vendor: Sussex Tool and Supply
$182.64
ISCAR ECPI-E4L 625-1.25/1.7C625 IC900 Standard Helix End Mill Carbide AlTiN 45.0° Chamfer Chamfer Standard Flute Flutes 4 Single End SOLID-SHRED Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
Neck Length 1.7000 43.18MM
